Insulated Flexible Copper Stranded Wires

Contact Now

CONSTRUCTION AND APPLICATION

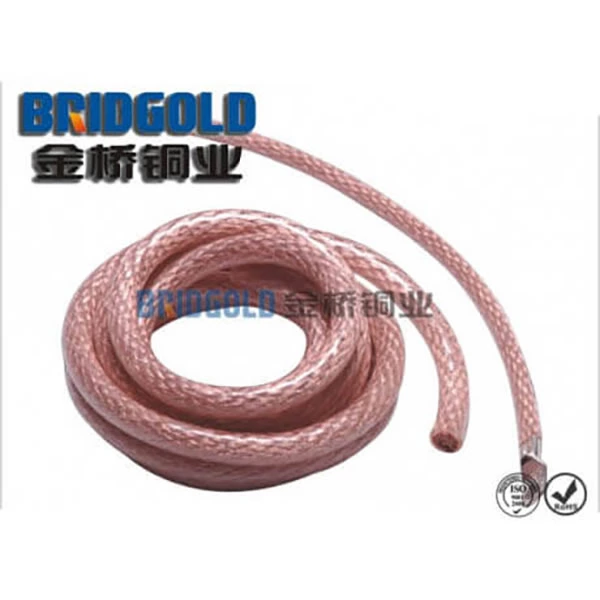

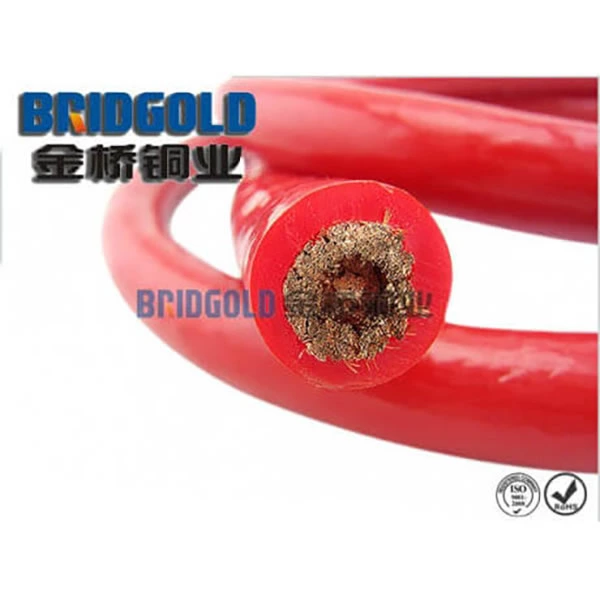

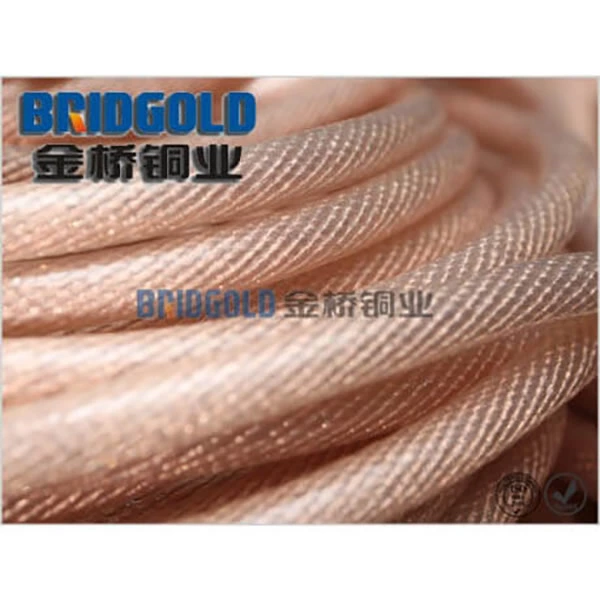

BGTJRV(X) type insulated flexible copper stranded wires consists of annealed highly flexible Cu-ETP copper wires which are insulated with PVC, and can be used for flexible electrical connection inside switchgears, switch boards or vehicles, and also used as grounding connection in other applications.

TECHNICAL DATA

Material: annealed Cu-ETP wires, C11000, copper content ≥ 99.95%

Finish: bare, tin plating

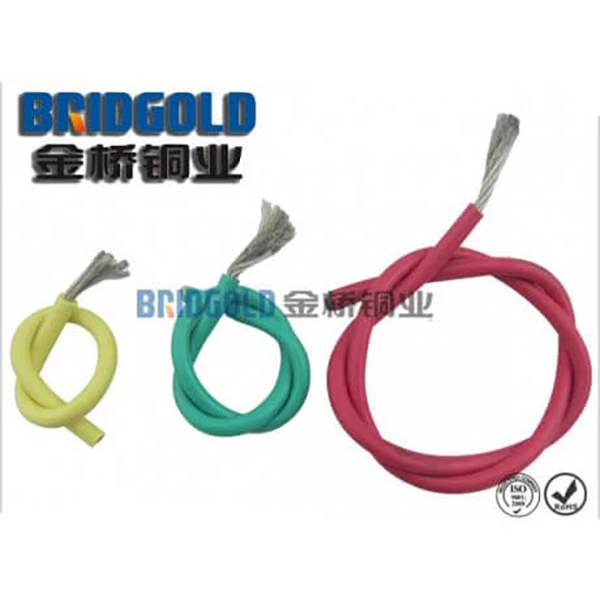

PVC Insulation Color: transparent, green, yellow, blue, and red. Other special color on request.

Single Wire Diameter:

  • 0.05mm (AWG 44)
  • 0.07mm (AWG 41)
  • 0.10mm (AWG 38)
  • 0.12mm
  • 0.127mm (AWG 36)
  • 0.15mm (standard)
  • 0.20mm (AWG 32)
  • 0.25mm
  • 0.254mm (AWG 30)
  • ......

Cross Sectional Area: 2.5mm2 - 120mm2

Packing Modes: in rolls, on spools or wooden drums

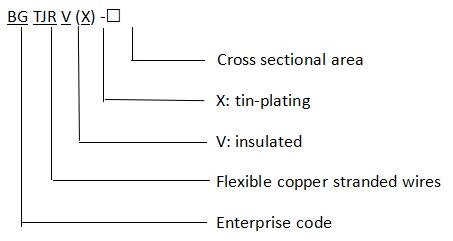

MODEL AND MEANING

MODEL AND MEANING

Customization Upon Request
