CONSTRUCTION AND APPLICATION

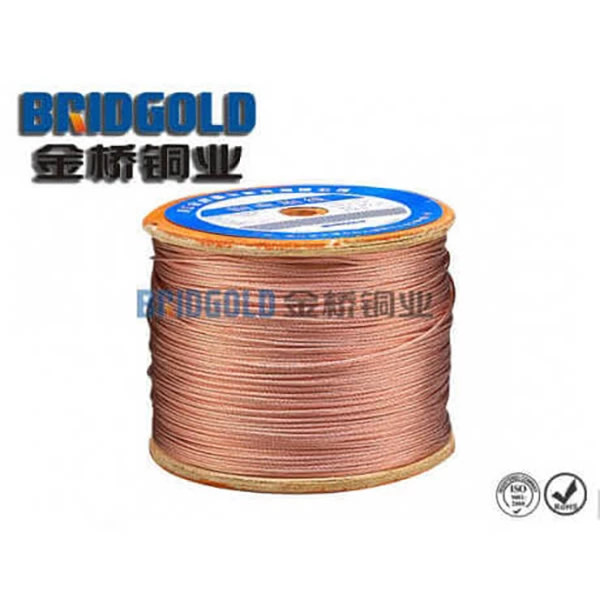

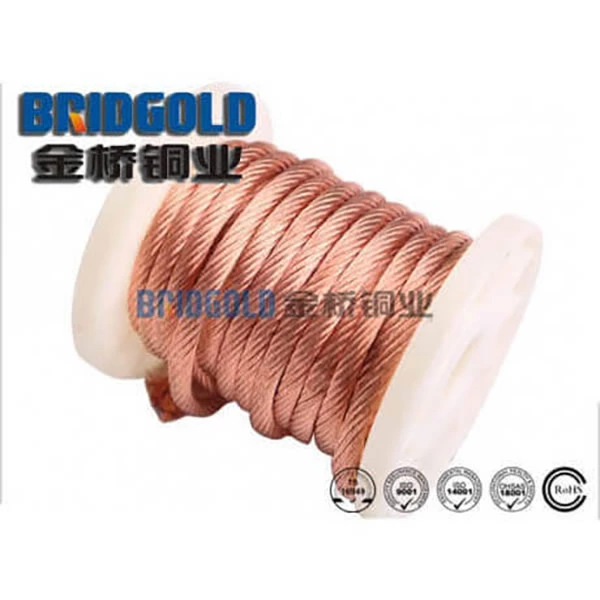

BGTS(X) and BGTSR type flexible copper stranded wires for electric brush consists of annealed highly flexible Cu-ETP copper wires, and can be used for flexible connection of motor, electrical apparatus and instrument wiring, specially for AC current or high-frequency current.
Standard: GB/T12970.4-2009.
TECHNICAL DATA
- Material: annealed Cu-ETP wires, C11000, copper content ≥ 99.95%

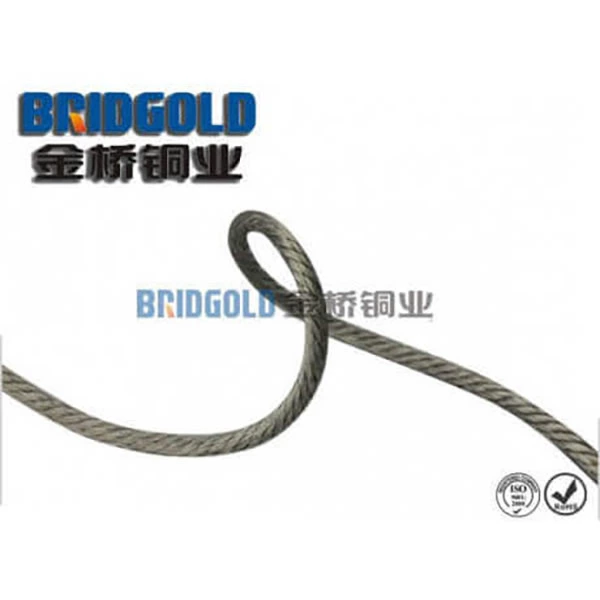

- Finish: bare, tin plating
- Packing Modes: in rolls, on spools or wooden drums
TYPE AND SPECIFICATION
| Type | Single Wire Diameter | Elongation, not less than |
| BGTS | 0.10mm (AWG38 ), 0.12mm | 18% |
| BGTSX | 0.10mm (AWG38 ), 0.12mm | 15% |
| BGTSR | 0.05mm (AWG44), 0.07mm(AWG41) | 15% |

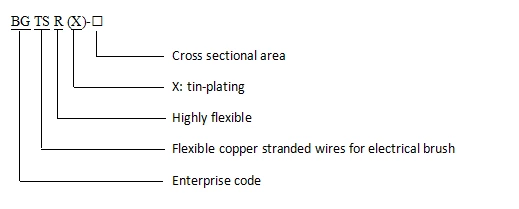

MODEL AND MEANING
Customization Upon Request
| Part No. | Nominal Cross Section (mm2) | Calculating Cross Section (mm2) | Structure | Calculating Outside diameter (mm) | Max. DC Resistance at 20℃ Ω/km |
Calculating weight(kg/km) | ||
| Total Wire Number | Strands×Wire Number Per Strand/Single Wire Diameter (mm) | BGTS | BGTSX | |||||
| BGTS(X)-6.3 | 6.3 | 6.24 | 552 | 12×46/0.12 | 4.3 | 2.94 | 3.07 | 59.1 |
| BGTS(X)-8 | 8.0 | 7.87 | 696 | 12×58/0.12 | 4.8 | 2.33 | 2.44 | 74.9 |
| BGTS(X)-10 | 10 | 10.04 | 888 | 12×74/0.12 | 5.3 | 1.83 | 1.91 | 95.1 |
| BGTS(X)-12.5 | 12.5 | 12.46 | 1102 | 19×58/0.12 | 5.9 | 1.48 | 1.55 | 118.5 |
| BGTS(X)-16 | 16 | 15.90 | 1406 | 19×74/0.12 | 6.7 | 1.16 | 1.21 | 151.2 |
Single Wire Diameter: 0.10mm (AWG38 )
| Part No. | Nominal Cross Section (mm2) | Calculating Cross Section (mm2) | Structure | Calculating Outside diameter (mm) | Max. DC Resistance at 20℃ Ω/km |
Calculating weight(kg/km) | ||
| Total Wire Number | Strands×Wire Number Per Strand/Single Wire Diameter (mm) | BGTS | BGTSX | |||||
| BGTS(X)-1 | 1 | 0.99 | 126 | 7×18/0.10 | 1.4 | 18.5 | 19.3 | 9.5 |
| BGTS(X)-1.4 | 1.4 | 1.37 | 175 | 7×25/0.10 | 1.7 | 13.2 | 13.7 | 12.5 |
| BGTS(X)-1.5 | 1.5 | 1.48 | 189 | 7×27/0.10 | 1.8 | 11.9 | 12.7 | 14.0 |
| BGTS(X)-1.8 | 1.8 | 1.75 | 224 | 7×32/0.10 | 2.0 | 10.2 | 10.7 | 16.5 |
| BGTS(X)-2 | 2 | 1.98 | 252 | 7×36/0.10 | 2.2 | 9.23 | 9.65 | 19.5 |
| BGTS(X)-2.5 | 2.5 | 2.53 | 322 | 7×46/0.10 | 2.4 | 7.39 | 7.72 | 25.0 |
| BGTS(X)-3 | 3 | 2.97 | 378 | 7×54/0.10 | 2.7 | 6.16 | 6.43 | 29.5 |
| BGTS(X)-4 | 4 | 3.96 | 504 | 7×72/0.10 | 2.8 | 4.62 | 4.83 | 38.0 |
| BGTS(X)-5 | 5 | 4.94 | 630 | 7×90/0.12 | 3.2 | 3.69 | 3.86 | 47.6 |
| BGTS(X)-6 | 6 | 5.93 | 756 | 12×63/0.10 | 3.7 | 3.01 | 3.23 | 58.5 |
| BGTS(X)-6.3 | 6.3 | 6.24 | 552 | 12×46/0.12 | 4.3 | 2.94 | 3.07 | 59.1 |
| BGTS(X)-8 | 8 | 7.91 | 1008 | 12×84/0.10 | 4.2 | 2.33 | 2.44 | 75.5 |
| BGTS(X)-9 | 9 | 8.95 | 1140 | 12×95/0.10 | 4.4 | 2.05 | 2.15 | 87.0 |
| BGTS(X)-10 | 10 | 8.89 | 1260 | 12×105/0.10 | 4.8 | 1.83 | 1.91 | 97.2 |
| BGTS(X)-12 | 12 | 11.97 | 1524 | 12×127/0.10 | 5.4 | 1.50 | 1.62 | 117.0 |
| BGTS(X)-16 | 16 | 15.90 | 2025 | 15×135/0.10 | 6.2 | 1.16 | 1.21 | 156.0 |
