CONSTRUCTION AND APPLICATION

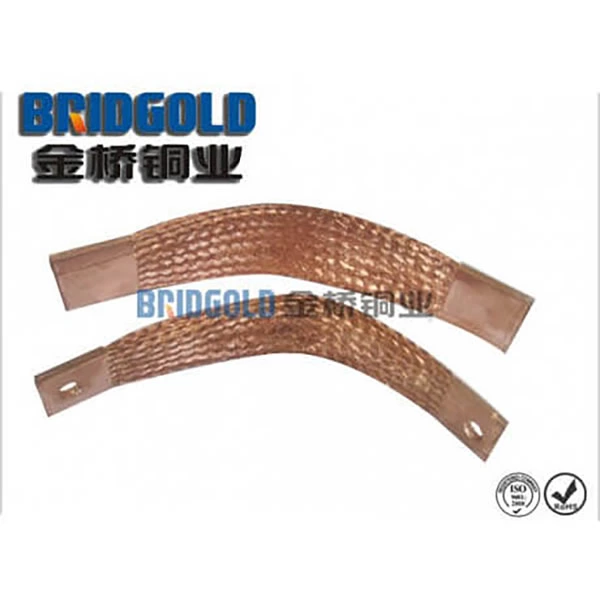

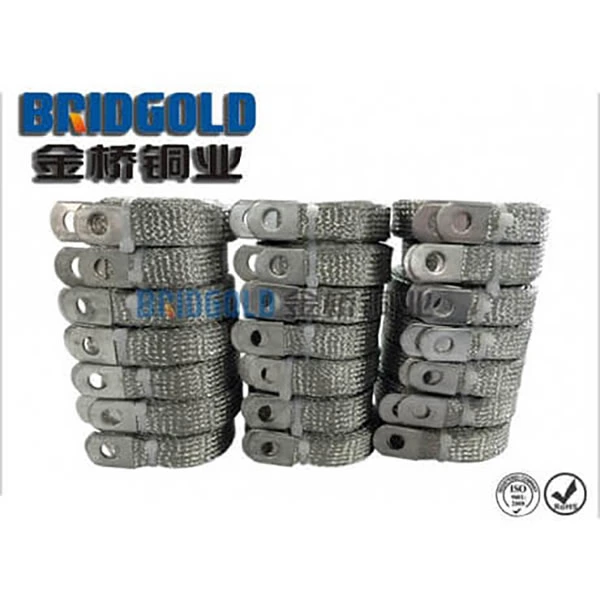

The flexible copper braided connectors are made of flexible copper braids with solderless pressed ferrules at each side as contact areas.

The flexible copper braids consist of Cu-ETP wires which are braided according to standard GB/T6313.2-1992.

TECHNICAL DATA

Material: annealed Cu-ETP wires, C11000, copper content ≥ 99.95%

Finish: bare, tin plating, nickel plating, silver plating

Single Wire Diameter:

  • 0.05mm (AWG 44)
  • 0.07mm (AWG 41)
  • 0.10mm (AWG 38)
  • 0.12mm
  • 0.127mm (AWG 36)
  • 0.15mm (standard)
  • 0.20mm (AWG 32)
  • 0.25mm
  • 0.254mm (AWG 30)

Cross Sectional Area: 1.5mm2 - 6000mm2

When you place an order, please specify:

  • Cross sectional area
  • Length (L)
  • Ferrule Type & Hole Type
  • Hole Diameter (d)
  • Single Wire Diameter (default 0.15mm)

MODEL AND MEANING

MODEL AND MEANING

Customization Upon Request

Part No.  Cross Section (mm2) W/W1 Approx. (mm) Thickness Approx. (mm) L (mm) d (mm)
BGTZ(X)-1.5/L/d/Aa 1.5 4 1.6 According to your request According to your request
BGTZ(X)-2/L/d/Aa 2 5 1.6
BGTZ(X)-2.5/L/d/Aa 2.5 6 1.6
BGTZ(X)-4/L/d/Aa 4 7 1.8
BGTZ(X)-6/L/d/Aa 6 10 1.8
BGTZ(X)-8/L/d/Aa 8 12 1.8
BGTZ(X)-10/L/d/Aa 10 15 1.8
BGTZ(X)-12/L/d/Aa 12 20 1.9
BGTZ(X)-14/L/d/Aa 14 20 2.1
BGTZ(X)-16/L/d/Aa 16 19 2.2
BGTZ(X)-20/L/d/Aa 20 20 2.4
25 2.6
BGTZ(X)-25/L/d/Aa 25 20 2.7
25 2.8
BGTZ(X)-35/L/d/Aa 35 25 3.3
BGTZ(X)-50/L/d/Aa 50 20 4.2
25 4.0
30 4.0
40 3.5
45 4.0
BGTZ(X)-70/L/d/Aa 70 20 7.0
25 5.7
30 5.5
